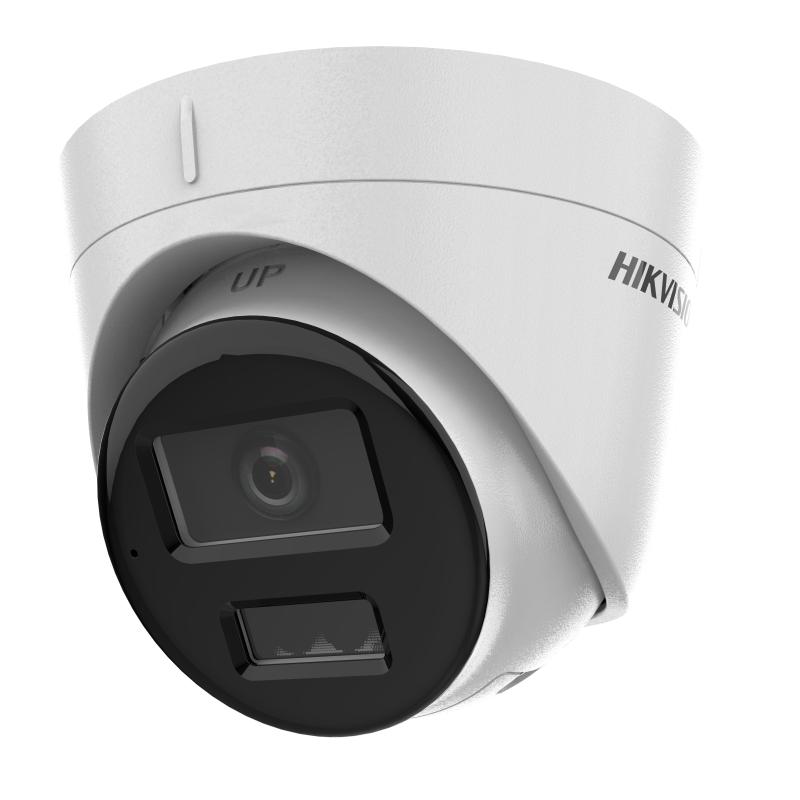

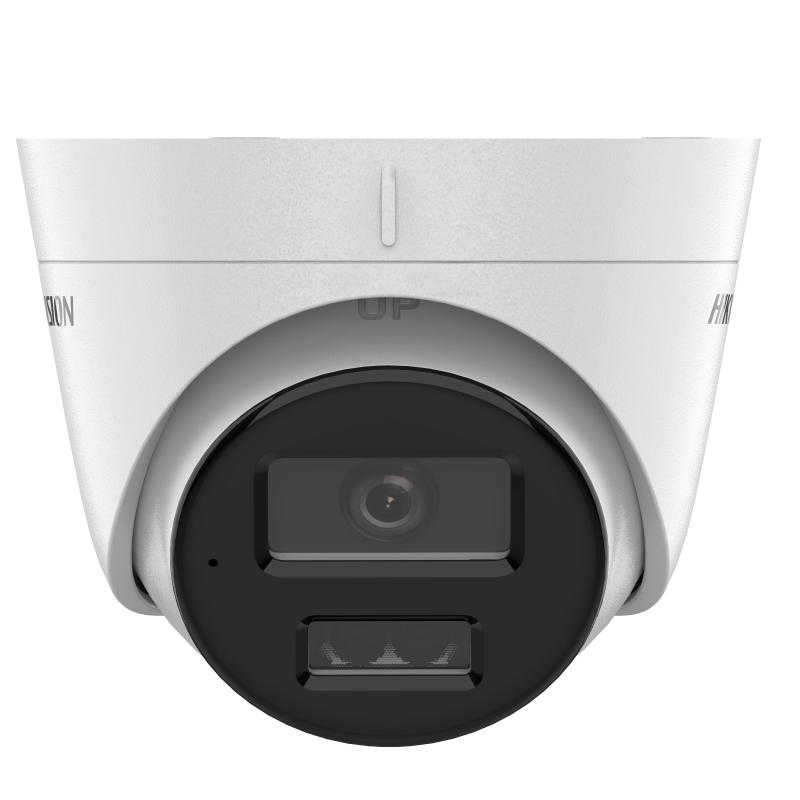

Hikvision DS-2CD1323G2-LIU(F) 2 MP Smart Hybrid Light Fixed Turret İp Kamera

• Kamera
• Image Sensor1/2.9" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Approval EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013 General Power

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.5 W

MaterialMetal & Plastic DimensionØ110 mm × 89.2 mm (Ø4.3" × 3.5") Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") WeightApprox. 340 g (0.7 lb.) With Package WeightApprox. 560 g (1.2 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) LanguageEnglish, Ukrainian General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email Event Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in MicrophoneYes Reset Key-F: Yes Image Wide Dynamic Range (WDR)Digital WDR SNR≥ 52 dB Day/Night SwitchDay,Night,Auto,Schedule Image EnhancementBLC,HLC,3D DNR Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Privacy Mask4 programmable polygon privacy masks Network SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP User/Host

Up to 32 users

3 user levels: administrator, operator, and user

ClientiVMS-4200,Hik-Connect Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+

Audio Audio TypeMono sound Environment Noise FilteringYes Audio Sampling Rate8 kHz/16 kHz Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Video Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile,Main Profile,High Profile H.265 TypeMain Profile Bit Rate ControlCBR,VBR Region of Interest (ROI)1 fixed region for main stream Illuminator Supplement Light TypeIR,White Light Supplement Light RangeUp to 30 m Smart Supplement LightYes IR Wavelength850 nm DORI DORI

2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Lens Lens TypeFixed focal lens, 2.8 and 4 mm optional Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

Lens MountM12 Iris TypeFixed ApertureF1.6
