Hikhvision Termal Kamera

Ürünler Termal Kameralar

Marka: Hikvision

Model: DS-2TD2617B-6/PA

Kamusal Alanlar, Şirketler, AVM'ler, İstasyonlar, Mağazalar, Fabrikalar, Okullar İçin Akıllı Termal Kamera
Hızlı iletişim için: 0533 660 45 95

Adet:

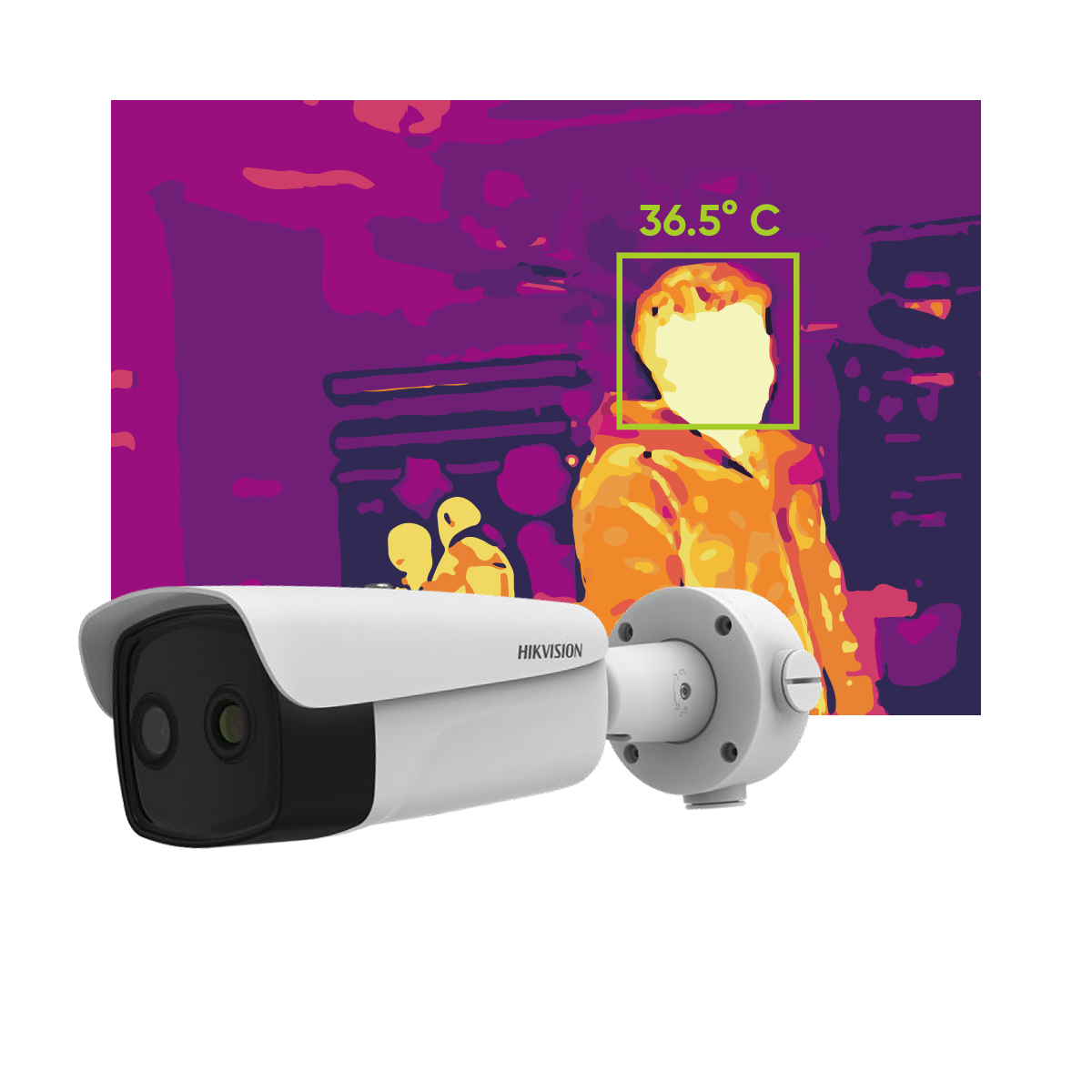

Termografik Bullet Vücut Sıcaklığı Ölçüm Kamerası, nesnenin sıcaklığını gerçek zamanlı olarak yüksek bir doğrulukta ölçebilir. Kalabalık kamusal alan arasında daha yüksek vücut ısısına sahip insanları keşfetme ve izleme yeteneğine sahiptir, muayene ve karantina için gümrük, havaalanı, okul ve hastane gibi yerlerde yaygın olarak kullanılabilir.

DS-2TD2617B-6PA Termografik Isı Ölçer Kamera

Termal çözünürlük: 160 x 120

Termal sensör: Vanadyum Oksit Soğutulmamış Odak Düzlemi Dedektörleri

Sinyal: IP, CCTV

Çok amaçlı

İkinci sensör: Termal

Thermal
Image SensorVOx Uncooled Focal Plane Arrays
Resolution160×120
Pixel Interval17μm
Response Waveband8μm to 14μm
NETDLess than 40 mK (@25°C,F#=1.1)
Focal Length6.2mm
IFOV2.74 mrad
ApertureF1.1
Field Of View25° × 18.7° (H × V)
Min. Focusing Distance0.6 m

Optical
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688×1520, 4MP
Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Field Of View39.42° × 22.14° (H × V)
Focal Length8mm
Shutter Speed1s to 1/100,000s
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night ModeIR cut filter with auto switch
WDR120 dB

Illuminator
IR DistanceUp to 40 m
IR Intensity And AngleAutomatically adjusted

Feature
Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel

Smart Function
Temperature RangeFrom 30°C to 45°C (86°F ~ 113°F)
Temperature Accuracy± 0.5 °C

Network
Main StreamThermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
Simultaneous Live ViewUp to 20

Interface
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Alarm Input2-ch inputs (0-5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600Ω
Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
On-Board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W
Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
Weight1.76 kg (3.88 lb)

hikvision-ds-2td2617b-6-pa0315-(1).pdf İndir
